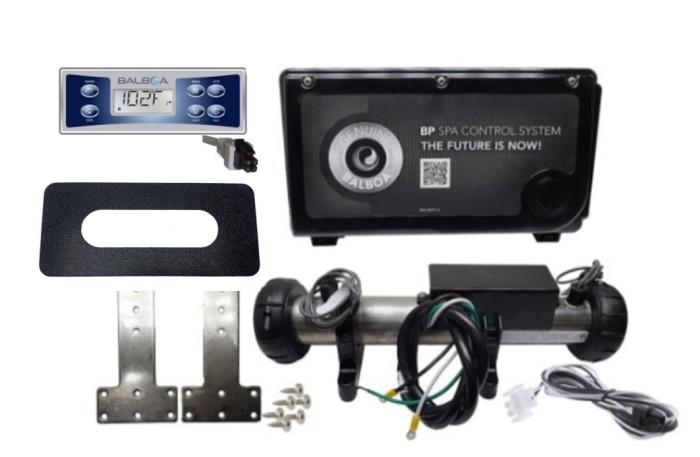

BP100G2 retrofit kit with TP500 keypad and remote heater

• Operates:

• 2 Speed Pump 1


• 1 Speed Pump 2,


• Ozone


• Audio/Video


• Circ Pump (If using circ pump then pump 1 can only be 1 speed)


• Light








  *Pump 1, Circ and Ozone must always be the same voltage

  * Included topside is for 2 pump configuration only.

  Replacement Option for: Balboa Lite Leader 54115, 54116

  G4311 Balboa® BP100/BP100G2 lowest cost entry control systems, remote Heater, less Topside Customized to fit your needs.



  • Features:
  • Remote heater
  • Mounting brackets can be installed vertically.
  • Mounting brackets can be installed horizontally.



    Product Specifications:
  • Sensors: M7 Patented Temperature Probes
  • Spa Lights Controls: 1A (MAX).
  • System outputs: 120V Pump, 1120V Blower, 120V Ozone, 12V Spa Light, 4.0Kw Heater
  • Wireless System Control: (bwaT)/ControlMySpaT/Balboa Bluetooth Audio (bbaT)
  • Size: 18" × 12" × 10"
  • Model/Series: BP100G2
  • Warranty by manufacturer: 1 Year
